LYODRY MIDI FREEZE DRYER

-55°C or -85°C, 18Kg Ice Condenser, directly replaces SuperModulyo Freeze Dryer
UK Designed, Manufactured and Supported

The LyoDry Midi Freeze Dryer is a low cost, laboratory freeze dryer offering more freeze drying capacity on an economical scale. Ideal, if you are scaling up your benchtop freeze drying process on a limited budget. With a larger ice condenser capacity of 18Kg, the LyoDry Midi provides larger batch freeze drying on a smaller budget.



A modular freeze dryer, it is designed to work with a wide variety of drying chambers from a standard acrylic chamber up to a 10-shelf SS chamber for increased capacity. LyoDry Midi can also be used as a condenser or solvent trap and sits conveniently beside a standard laboratory bench, with its own integral vacuum pump.

​

LyoDry Midi is suitable for a wide range of freeze drying duties including pharma, food and beverage, botanical, geological and archaeological conservation applications.



LyoDry Midi was originally designed to directly replace the Edwards EF12K Supermodulyo®  freeze dryer, thereby providing end user familiarity and accessory compatibility, and today incorporates the latest freeze drying technologies.

Supermodulyo
freeze dryer with heated chamber

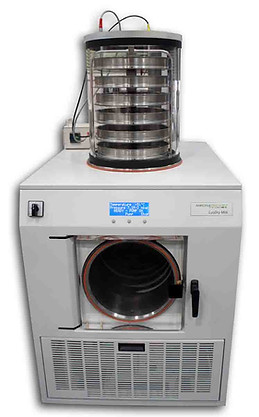

LyoDry Midi with LSAD6H Heated Tray Accessory

LyoDry Midi with LSDC Acrylic Drying Chamber

low cost freeze dryer bulk drying

LyoDry Midi with LSCC10 bulk drying chamber with optional manifold assembly for flask drying

LyoDry Midi customers include universities, government R&D, blue chip pharmaceutical, research institutes and archaeological conservators, both in the UK and overseas.

​

For more closely controlled freeze drying, including data logging, trends, pressure control and touch screen, see instead the LyoDry Midi Pro which has added functions including USB and ethernet comms for an enhanced freeze drying process.

​

LyoDry Freeze Dryers are UK designed, manufactured and supported. They conform to the latest environmental standards, manufactured by F-Gas certified engineers using CFC free refrigeration gas. LyoDry Freeze Dryers are designed to have fast cool down times, helping to minimise energy consumption and maximise life expectancy.

LyoDry Midi

ICE CONDENSER  - TEMPERATURE & CAPACITY

CONTROL

LyoDry Midi freeze dryer is a free standing 18Kg ice capacity freeze dryer condenser, with condenser temperature options of either:


  • -55°C (part number LSMC55), or

  • -85°C (part number LSMC85)

​

The LyoDry Midi features a clear, bright LCD display, visible even from a distance. Simple commands allow the operator to view vacuum units in millibar, Torr or pascal and temperature in Celsius or Fahrenheit. System status is obvious, even at a glance. The vacuum pump is controlled on-screen, and the user is prompted to do this when the condenser reaches temperature.

LYODRY MIDI -  FEATURES

MORE INFORMATION / DOWNLOADS

  • -55°C or -85°C, 18Kg capacity, smooth wall, SS Ice Condenser

  • Wide choice of drying accessories for bulk, flask and vials drying

  • Directly replaces SuperModulyo Freeze Dryer EF12K


  • Free standing - designed to fit beside a standard laboratory bench

  • CFC free refrigeration system

  • Hot gas defrost


  • Large, alphanumeric display of vacuum and temperature with backlit, matrix LCD display

  • On-screen, user prompted vacuum pump control

  • Optional temperature units (°C or °F) and vacuum units (mbar, Torr or pascal


  • 12 months standard warranty - extended warranties available (terms apply)

  • UK designed, manufactured and supported

Specification & Operator Manual

LyoDry Midi - Technical Specification

LyoDry Midi - Operator Manual

CUSTOMERS

"The service is excellent, fast and efficient. We bought a LyoDry Freeze Dryer and are very happy with it. The support and service was perfect to an extent that we have recently bought another LyoDry..We would happily recommend both the LyoDry Freeze dryer and Mechatech to other laboratories."
MechaTech Systems customer

ORDERING INFORMATION

Please Contact Us for a quotation
multipurpose freeze dryer

LyoDry Midi Condenser Unit only (no accessory)

LyoDry Midi Freeze Dryer, 18Kg ice condenser capacity. Suitable for use with LyoDry accessories or (most) Modulyo or Supermodulyo accessories.

PART NUMBERS:
-55°C condenser: LSMC55
-85°C condenser: LSMC85

Lab freeze dryer

LyoDry Midi with Acrylic Chamber

LyoDry Midi Freeze Dryer, 18Kg ice condenser capacity. Complete with Acrylic Chamber, 350mm diameter x 435mm high, includes clear acrylic lid and 2 x L-gaskets.

PART NUMBERS:
-55°C condenser: LSMC55-LSDC
-85°C condenser: LSM85-LSDC

Laboratory freeze dryer

LyoDry Midi with Acrylic Chamber and 6-tray SS accessory

LyoDry Midi Freeze Dryer, 18Kg ice condenser capacity. With Acrylic Chamber and 6-tray SS tray assembly, each removable tray measuring 284mm dia x 30mm height.

PART NUMBERS:
-55°C condenser: LSMC55-LSAD6
-85°C condenser: LSMC85-LSAD6

All purpose freeze dryer

LyoDry Midi Condenser with Heated Tray Drying Accessory

LyoDry Midi Freeze Dryer, 18Kg ice condenser capacity. with Heated Tray Drying Accessory comprising Acrylic Chamber & Lid, L-Gaskets, 6 x SS tray assembly, heater mats and temperature controller, 230V, 50Hz.

PART NUMBERS:
-55°C condenser: LSMC55-LSAD6H
-85°C condenser: LSMC85-LSAD6H

Economical freeze dryer

LyoDry Midi with Acrylic Chamber with 8-Port Lid with Valves for Flask Drying

LyoDry Midi Freeze Dryer, 18Kg ice condenser capacity. Complete with Acrylic Chamber, with 8-port valve lid assembly, including 8 x removable neoprene vacuum isolation valves 3/4" ID.

PART NUMBERS:
-55°C condenser: LSMC55-LSDCV
-85°C condenser: LSM85-LSDCV

Lab freeze dryer made in UK

LyoDry Midi with 8-Port Acrylic Chamber and 6-tray SS accessory

LyoDry Midi Freeze Dryer, 18Kg ice condenser capacity. With 8-port Acrylic Chamber and 6-tray SS tray assembly, each removable tray measuring 284mm dia x 30mm height.

PART NUMBERS:
-55°C condenser: LSMC55-LSAD6CV
-85°C condenser: LSMC85-LSAD6CV

Freeze dryer for flask drying

LyoDry Midi with 24-Port SS Column Manifold

LyoDry Midi Freeze Dryer, 18Kg ice condenser capacity. with 24-port column manifold. Includes 24 ports, mounted radially around column with removable neoprene valves, each of which can be fitted with a flask of up to 1 litre capacity (flasks not supplied). A manifold sealing gasket is provided to seal the base.

PART NUMBERS:
-55°C condenser: LSMC55-LSPM24
-85°C condenser: LSMC85-LSPM24

Low cost pilot freeze dryer

LyoDry Midi with 10-Tray Freeze Dryer Chamber

LyoDry Midi Freeze Dryer, 18Kg ice condenser capacity. Complete with SS freeze drying chamber, with 10 removable trays each measuring 450mm wide x 345mm deep. Gap between tray support rails 85mm. With single viewport. Optional manifold for flask drying.

PART NUMBERS:
-55°C condenser: LSMC55-LSCC10
-85°C condenser: LSMC85-LSCC10

Low cost production freeze dryer

LyoDry Midi with 10-Tray Freeze Dryer Chamber, Heated

LyoDry Midi Freeze Dryer, 18Kg ice condenser capacity. Complete with SS freeze drying chamber, with 10 removable trays each measuring 450mm wide x 345mm deep. Gap between tray support rails 85mm. With single viewport. Heated. Optional manifold for flask drying.

PART NUMBERS:
-55°C condenser: LSMC55-LSCC10H
-85°C condenser: LSMC85-LSCC10H
